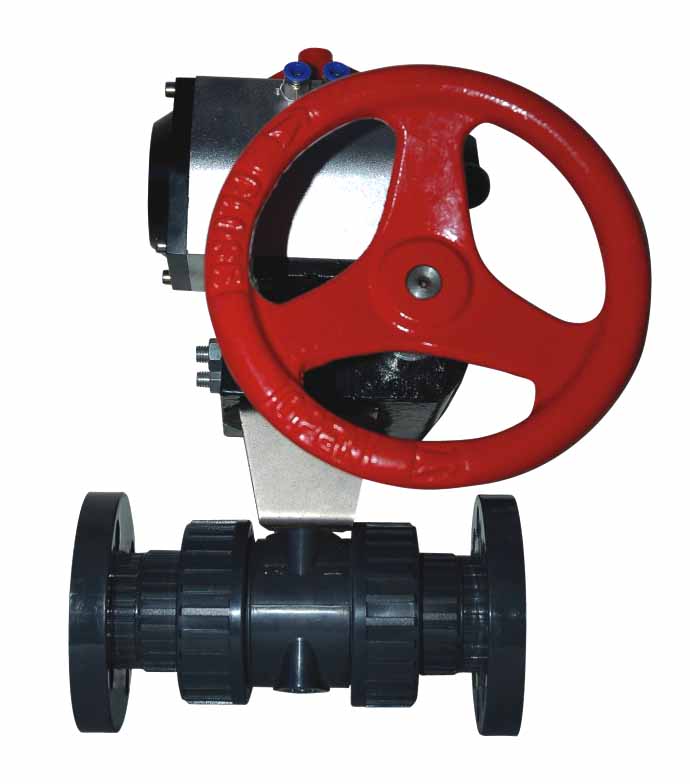

气动PVC球阀
PNEUMATIC PVC BALL VALVE
JLQ641-F-PN10S
主要零件材质表 FORM of Major Parts Materials
|
项目
Item |
零件Parts |
Pcs |
材质Materials |
项目
Item |
零件Parts |
Pcs |
材质Materials |
|
1 |
阀杆Stem |
1 |
氧化聚氟乙烯，聚偏二氟乙烯
UPVC,PP,CPVC,PVDF |
9 |
阀杆O型圈
Body O-Ring |
1 |
EPDM,VITON |
|
2 |
球芯 Ball |
1 |
UPVC,PP,CPVC,PVDF |
10 |
阀座传送
Seat Carrier |
2 |
UPVC,PP,CPVC,PVDF |
|
3 |
阀体 Body |
1 |
UPVC,PP,CPVC,PVDF |
11 |
黄铜 Brass inserts |
1 |
黄铜 Brass inserts |
|
4 |
连接螺母
Union Nut |
2 |
UPVC,PP,CPVC,PVDF |
12 |
法兰 Flange |
2 |
聚偏二氟乙烯
UPVC,PVDF |
|
5 |
未端连接器
End connector |
1 |
UPVC,PP,CPVC,PVDF |
13 |
支架 Monting Bracker |
1 |
SUS304 |
|
6 |
阀座 Seat |
2 |
聚四氟乙烯 PTFE |
14 |
阀杆连接器
Stem Transmit Housing |
1 |
SUS304 |
|
7 |
阀杆O型圈
Stem O-Ring |
1 |
EPDM,VITON |
15 |
气胎
Pneumatic actuators |
1 |
合金
Ecrld Allminum Alloy |
|
8 |
阀座传送O型
Stem Carrier O-Ring |
2 |
EPDM,VITON |
|
|
|
|
主要外形及连接尺寸 JLQ641F Mani Outline and Connecting Flange Size
|
公称通径
DN |
D1 |
D2 |
D3 |
d |
e |
n |
P |
L |
H |
H1 |
A |
J |
T |
K |
E |
S |
S1 |
|
插座
Plug |
线
Line |
插座
Plug |
线
Line |
法兰
Flange |
|
15 |
15 |
65 |
95 |
20 |
1/2 |
14 |
4 |
16.0 |
113 |
113 |
147 |
151.6 |
40 |
137 |
66 |
15 |
31.0 |
|
3/16-24G |
2 |
|
20 |
19 |
75 |
105 |
25 |
3/4 |
14 |
4 |
18.5 |
124 |
124 |
161 |
157.7 |
40 |
137 |
66 |
15 |
37.0 |
|
1/4-20G |
2 |
|
25 |
25 |
85 |
115 |
32 |
1 |
14 |
4 |
22.0 |
142 |
142 |
187 |
162.0 |
40 |
137 |
66 |
16 |
40.0 |
|
1/4-20G |
2 |
|
32 |
38 |
100 |
140 |
40 |
11/4 |
18 |
4 |
26.0 |
178.3 |
178.3 |
225.3 |
197.7 |
55 |
152 |
73 |
16 |
55.3 |
|
5/16-18G |
2 |
|
40 |
38 |
110 |
150 |
50 |
11/2 |
18 |
4 |
31.0 |
178.3 |
178.3 |
225.3 |
197.7 |
55 |
152 |
73 |
16 |
55.3 |
|
5/16-18G |
2 |
|
50 |
50 |
120 |
165 |
63 |
2 |
18 |
4 |
37.5 |
201.9 |
201.9 |
255.9 |
225.3 |
55 |
202 |
85 |
20 |
68.4 |
|
5/16-18G |
2 |
|
65 |
65 |
145 |
185 |
75 |
21/2 |
18 |
4 |
43.5 |
224 |
224 |
277 |
278.2 |
68 |
271 |
110 |
20 |
79.0 |
40.0 |
1/4-20G |
4 |
|
80 |
78 |
160 |
200 |
90 |
3 |
18 |
8 |
51.0 |
276.1 |
276.1 |
333.1 |
307.7 |
85 |
271 |
110 |
22 |
79.0 |
40.0 |
1/4-20G |
4 |
|
100 |
100 |
180 |
220 |
110 |
4 |
18 |
8 |
61.0 |
327.0 |
327.0 |
384.0 |
362.0 |
80 |
360 |
140 |
22 |
121.3 |
49.8 |
5/16-18G4 |
4 |
